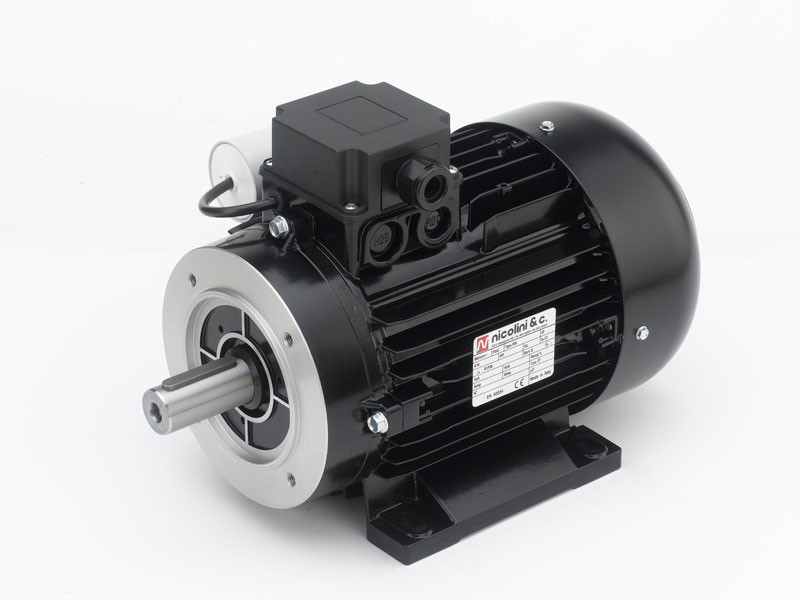

single-phase motors
single-phase motors
4 Poli - 1500rpm
Squirrel cage rotor - Totally enclosed fan cooled IP55 - Ins.cl.F - 230V 50Hz
| TIPO MOTORE MOTOR TYPE |
POTENZA NOMINALE RATED OUTPUT |
velocità speed |
rendimento efficency |
fattore di potenza power factor |
Corrente corrent 230V |
corrente avviamento current for d.o.l. starting |
Condens. capacitor |
coppia torque |
momento d'inserzia moment of inertia |
peso (b3) weight b3 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| RNM | Kw | rpm | % | COSφ | A | IS/IN | μF | Nm | Cs/Cn | Kgm² | Kg |
| RNM 63c4 | 0,18 | 1400 | 58 | 0,96 | 1,50 | 2,50 | 10,0 | 1,20 | 0,85 | 0,0005 | 5,0 |
| RNM 71a4 | 0,25 | 1380 | 58 | 0,95 | 2,65 | 2,50 | 12,5 | 1,75 | 0,82 | 0,0008 | 6,0 |
| RNM 71b4 | 0,37 | 1400 | 60 | 0,96 | 3,50 | 2,50 | 16,0 | 2,50 | 0,78 | 0,0014 | 7,0 |
| RNM 71c4 | 0,55 | 1390 | 58 | 0,99 | 5,20 | 2,20 | 20,0 | 3,80 | 0,70 | 0,0015 | 8,0 |
| RNM 80a4 | 0,55 | 1420 | 64 | 0,96 | 4,80 | 2,50 | 16,0 | 3,90 | 0,75 | 0,0018 | 9,0 |
| RNM 80b4 | 0,75 | 1420 | 65 | 0,98 | 6,20 | 2,60 | 25,0 | 5,00 | 0,70 | 0,0024 | 11 |
| RNM 80c4 | 1,00 | 1410 | 60 | 0,98 | 6,80 | 2,50 | 32,0 | 6,80 | 0,64 | 0,0026 | 12 |
| RNM 90Sa4 | 1,10 | 1420 | 70 | 0,92 | 8,50 | 2,70 | 45,0 | 7,40 | 0,62 | 0,0028 | 15 |
| RNM 90La4 | 1,50 | 1410 | 75 | 0,98 | 10,5 | 2,90 | 55,0 | 10,0 | 0,60 | 0,0035 | 17 |
| RNM 90Lb4 | 1,85 | 1390 | 65 | 0,99 | 13,2 | 2,50 | 60,0 | 12,7 | 0,50 | 0,0042 | 19 |
| RNM 90Lc4 | 2,20 | 1370 | 62 | 0,99 | 14,5 | 2,50 | 65,0 | 12,9 | 0,45 | 0,0042 | 19 |
| RNM 100a4 | 2,20 | 1430 | 75 | 0,97 | 14,0 | 2,90 | 65,0 | 14,7 | 0,55 | 0,0058 | 22 |
| RNM 100b4 | 2,60 | 1430 | 78 | 0,98 | 15,5 | 2,80 | 70,0 | 17,0 | 0,45 | 0,0071 | 24 |
| RNM 100c4 | 3,00 | 1410 | 69 | 0,98 | 17,0 | 2,70 | 80,0 | 19,5 | 0,44 | 0,0072 | 26 |
